AGS Conecta+ iON:
data processing and telematics
management in real-time
Conecta+ iON is an M2M device for positioning via GPS/GLONASS that integrates a wide range of different technologies and communication interfaces, designed under a flexible hardware architecture to adapt to all the different environmental conditions and types of vehicles for which it is intended. Additionally, has a specialized functionality provided by its large data processing capacity, and the continuous R&D carried out by AGS, based on its extensive experience in the real-time telematics control and management of fleets of industrial vehicles.
The Conecta+ iON device, in any of its finishing variants, is especially recommended for use in combination with the Conecta+ iTS Compact digital thermograph and the AGS Telematics Services Platform, to provide the end-user maximum benefits, obtained from real-time telematics control and management, which enhances traceability in compliance with the requirements established in the cold chain.
Conecta+ iON
The compact digital thermograph from AGS marks a turning point in the upgrading of the cold chain
Standard finish.Suitable for installation in all type of rigid industrial vehicle fleets
![iON](https://www.ags-atlantis.es/wp-content/uploads/2021/01/iON.png)
- Real-time display and tracking of vehicle positioning via GPS/GPRS
- Wired or wireless connection with the Conecta+ iTS Compact digital thermograph
- Programming and real-time control with multiple alarms (input/output to POIs or geographic zones, speed, temperature, improper opening of doors, stop time, etc.).
- Remote over the air and automatic firmware updates.
- In addition to these features, AGS Conecta+ iON allows you to control other elements of the vehicle.
- CANBus/OBD II data Reading.
- Digital tachograph and driver card data remote reading and downloading.
- Driver behavior analysis.
- Connection to external peripherals via digital and analog inputs and outputs (e.g. magnetic door open/close sensor, ignition locking/unlocking system, cold unit start, start signal on/off, etc.).

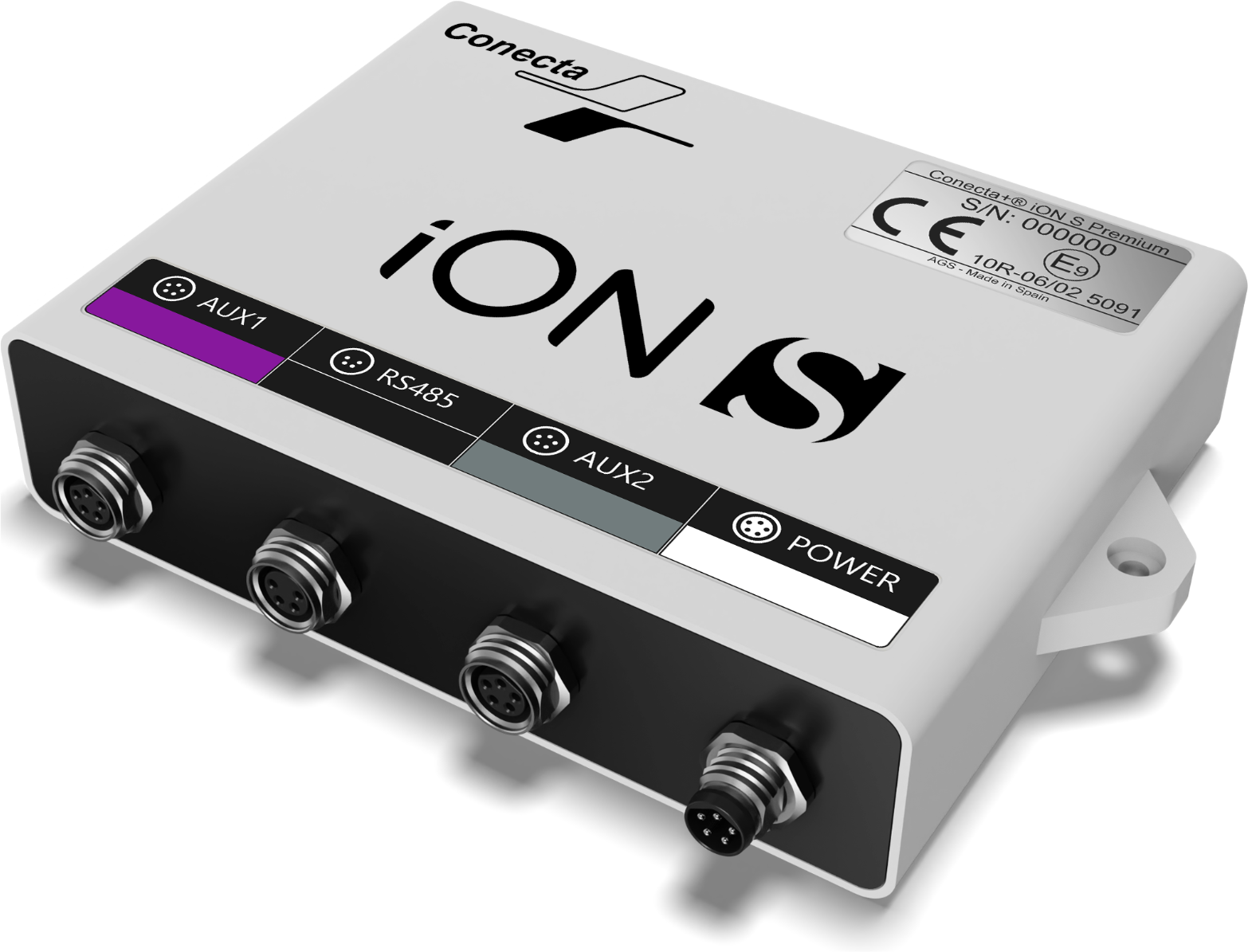

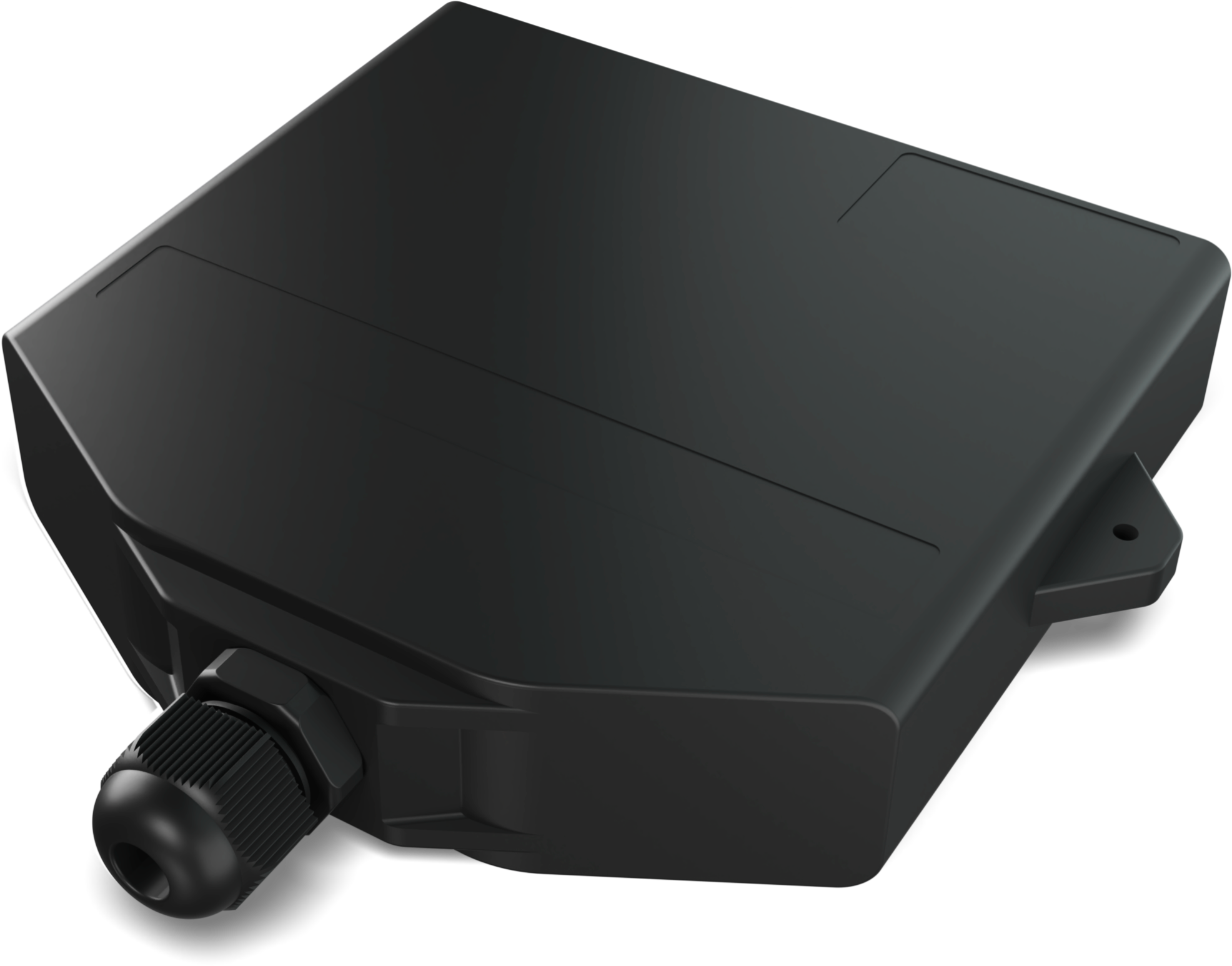

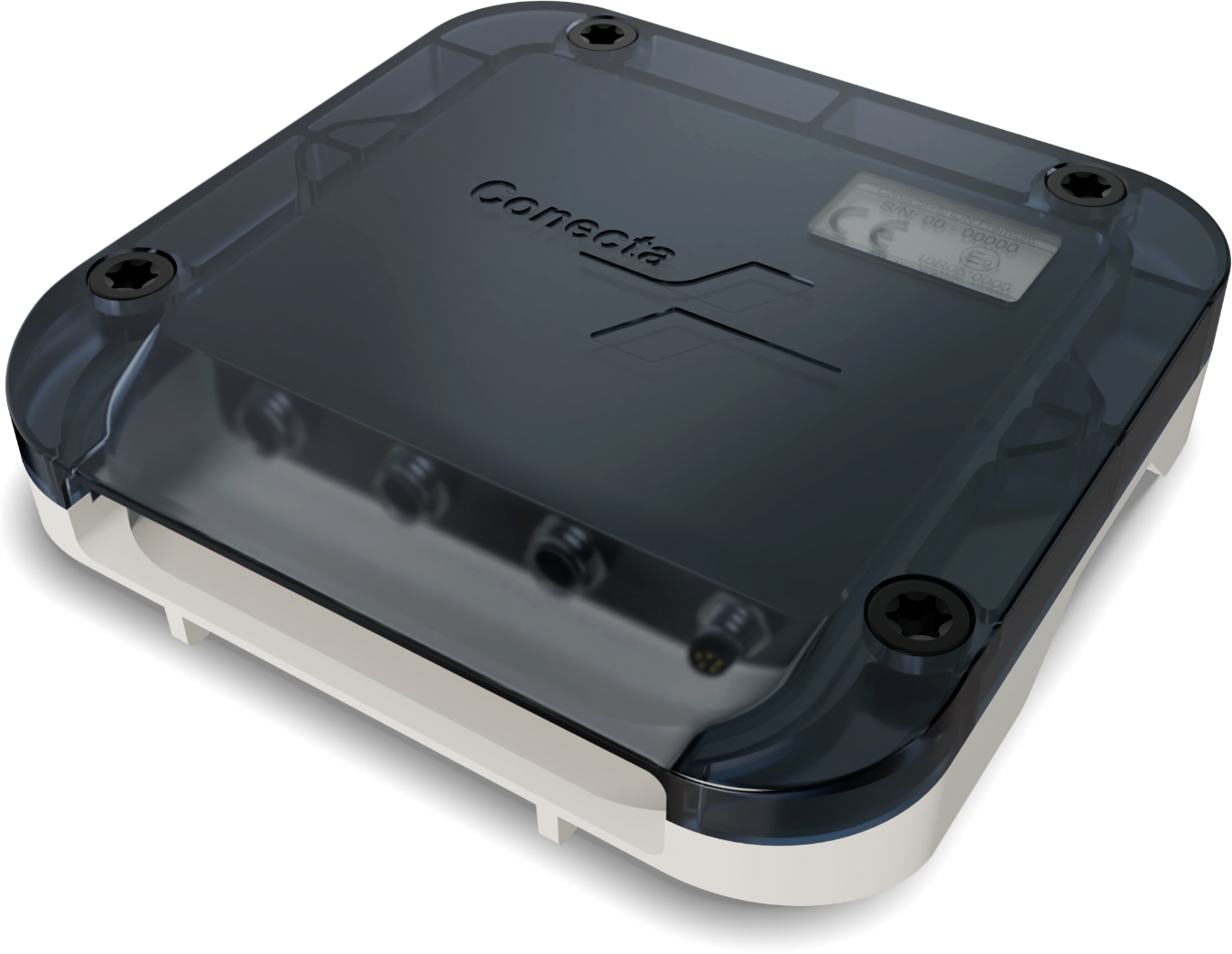

Premium Finish. It incorporates an IP-68-rated enclosure and box to be attached outside of the vehicle, which also protects against washing with pressurized water.
![iON_premium](https://www.ags-atlantis.es/wp-content/uploads/2021/01/iON_premium.png)
Designed for use on light and heavy, rigid or articulated vehicles, it adds many additional features to the standard version.
- Connection to the interface of the cooling equipment and use of the bidirectional protocol (depending on installation).
- Wireless connection to the Conecta+ device for online reading and reporting of data coming from the vehicle's EBS unit, and/or the TPMS system (from integrated manufacturers) if factory fitted.
- Control of vehicle´s door loading/unloading activity.
- Connection to the principal thermographs on the market provided with analog probes and ticket printers.
Conecta iON: features
Advanced functionality for rigid vehicles
- On-line monitoring and remote download of the digital tachograph.
- Real-time reading and reporting of the obtained data coming from the CANBus or OBD/OBD II line.
- Creation, management, and reporting of vehicle´s journeys, including driver behavior and efficiency analysis.
- Control and management of temperature data coming from each Conecta+ iTS Compact digital thermograph, both fixed and wireless.
Advanced functionalities for articulated vehicles
- Wireless identification and real-time control of the sub-assemblies (tractor and semi-trailer) that make up the articulated vehicle.
- Control and management of temperature data obtained from the Conecta+ iTS Compact digital thermographs.
- Connection to the main cooling equipment interface and its bi-directional protocol (depending on the installation) for:
- Display of total hours of activity in diesel and electric mode. Working mode by zones, vehicle battery voltage level, alarm code, etc.
- Display of temperatures for each of the "zones" (up to 3) of the vehicle; setpoint, cooling, return, and evaporator.
- Sending of remote programming commands (on/off, work mode, setpoint, etc.) for each of the "zones".
- Wireless connection to the Conecta+ accessory, for online reading and reporting of data coming from the vehicle's EBS unit, and/or the TPMS system.
- Connection to the principal thermographs on the market provided with analog probes and thermal ticket printers.
Functionality for cold rooms equipped with iTS compact
- Real-time display and monitoring of recorded temperatures and incidents, in each of the Conecta+ iTS compact devices, as well as the location where they are installed.
- Connection to different cold-storage room peripherals through their digital inputs/outputs and analog inputs, such as; magnetic door open/close sensor, cold equipment on/off signal, acoustic signal activation/notification to ARC when a temperature alarm is generated, etc.
- Programming and control in real-time of multiple available alarms, such as; temperature, humidity, communications, power, etc...
- Remote and automatic firmware updates.
Conecta+ iON: main features
Generals | ||
---|---|---|
Compliant Regulations: | • CE • Regulation 10 |
|
Storage | eMMC de 8 GB internal memory. | |
Dimensions | ||
Conecta+ iON: | 109 x 86 x 26 mm. | |
Conecta+ iON Premium: | 109 x 86 x 26 mm. | |
Premium outer cover: | 147 x 140 x 32,8 mm. | |
Climáticas y protección | ||
Nominal working temperature: | -30 ºC / 60 ºC | |
Storage temperature: | -35 ºC / 65 ºC | |
IP protection range: | • Conecta+ iON: IP20 • Conecta+ iON Premium: IP68 |
|
Energía | ||
Supply voltage (VDC): | 12 / 24 V | |
Operating Limits : | 8 / 32 V | |
Average consumption: | 30 mA | |
Internal battery: | Rechargeable 1800 mAh | |
Low consumption mode: | • With external power supply: < 5 mA • With internal battery only: < 1 mA |
|
External power supply: (optional) |
220/24 V (available only for permanent installations such as cold-store rooms | |
Communications | ||
Cable communication buses: | • Conecta+ iON: 1 x RS-485, 2 x RS-232, 1 x CAN o RS485 • Conecta+ iON Premium: 1 x RS-485, 1 x RS-232, 1 x RS-232 o CAN o RS485 |
|
GSM/GPRS: | • Quand-band: 850/900/1800/1900 MHz • GPRS Multi-Clot Class 12 • Protocols: TCP/UDP/FTP/HTTP • Support SMS • Integrated eSIM and nanoSIM socket |
|
GNSS: | • GPS/GLONASS/Galileo/BeiDou/QZSS • Autonomous AGPS |
|
Bluetooth: | 3.0 (Classic) / 5.0 (BLE) | |
I/O | ||
Digital inputs: | 2 x Active (8 to 32 V), 2 x Active (GND ) | |
Analog inputs: | 2 (de 0 a 10 V) | |
Digital outputs: | 4 type Open Drain. Maximum current, 500 Ma |
